CST Model RD Fine Screens
CST Model RD Fine Screens

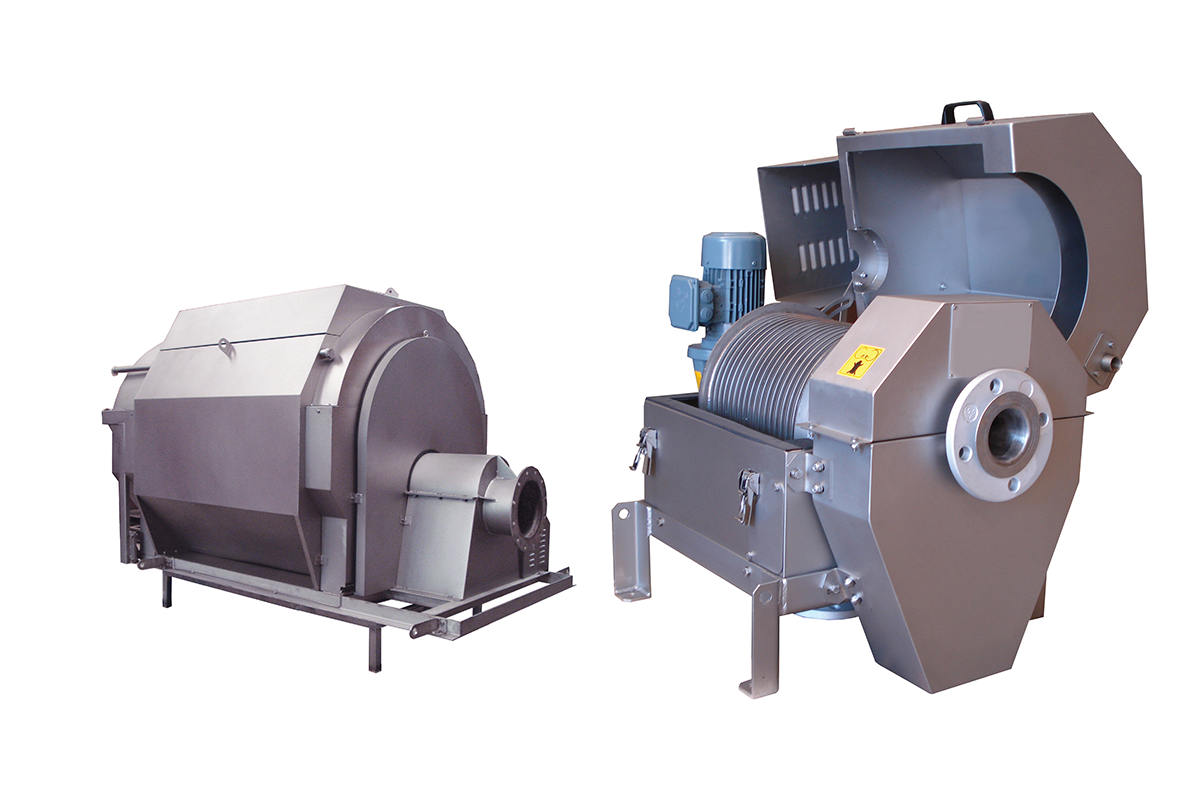

CST Model RD Rotary Drum Fine Screens deliver high-efficiency screening and solids separation for industrial and municipal wastewater applications. Engineered and manufactured in Australia to AUS-NZ standards, the Model RD is the most widely used and trusted screen in its class, combining full stainless steel construction with complete screenings conveyance, washing, and compaction options to protect downstream processes and reduce operator burden.
Installed in-channel or within a self-supporting tank, the Model RD is fully enclosed for odour and aerosol control and features a corrosion-resistant, self-cleaning design with no mechanical components contacting the screenings. Internal and external spray sparges provide automatic cleaning, while heavy-duty drive systems ensure reliable, long-lasting performance even under high fat, oil, and grease loadings. The Model RD is available with wedgewire or perforated-plate screen options and can be paired with S&L’s complete range of conveyance, washing, and compaction equipment for a fully integrated screening solution.| CST Model RD Fine Screens Technical Data | |
|---|---|
| Flow Capacity | Up to 1000 L/s per screen |
| Screen Diameter | 600 – 2000 mm |
| Screen Types | Wedgewire & perforated plate |
| Apertures | 0.25 mm – 6 mm |
| Installation | In-channel or with self-supporting tank |
| Construction | 304 or 316 stainless steel |
| Applications | Food & beverage processing, meat & agricultural processing, pulp, paper & manufacturing, municipal wastewater treatment |
Screen Components
1
1
2
3
3
4
5
Frequently Asked Questions
The Model RD is the most widely used and trusted screen for industrial wastewater screening and solids separation, built with full stainless steel construction (304 or 316) and designed and manufactured locally to Australian and New Zealand standards for both municipal and industrial markets.
No mechanical components contact the screenings, and the drum features a corrosion-resistant, self-cleaning design paired with heavy-duty drive systems, resulting in low operation and maintenance time and cost even in harsh conditions.
Yes. The drum is fully enclosed for odour and aerosol control, and removable screen covers allow safe operator access for maintenance without compromising that enclosure.
Internal and external spray sparges (with cold or hot water options) provide automatic self-cleaning, and the drum is available with wedgewire or perforated-plate screen media to suit your aperture and application needs.
The Model RD handles high fat, oil, and grease loadings across slaughterhouses and abattoirs, food and beverage processing, pulp and paper, plastics manufacturing, and municipal treatment plants including raw sewage fine screening, pre-MBR, and sludge thickening.
